STM1325-4 Axis

3D CNC Router Machine

 4.8/5 Based On 53 Votes
$35800 - $40000

360 Sets / Month In Stock

Shipping Available To All Over The World

T/T, Credit Cards, e-Checking, Alibaba Trade Assurance

STYLECNC

4 axis EPS CNC router machine is used for EPS molding, aluminium mold, wood mold, automotive foam mold, aviation mold, trains mold, 3D musical instruments, bumper, bonnet interior trim mold.

Product Overview

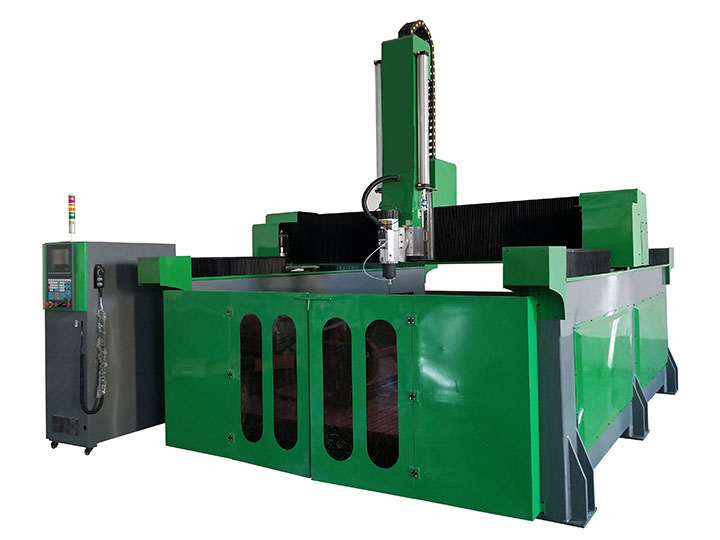

4 Axis EPS CNC Router for Foam, Wood, Aluminium Mold Making

Product Details



Configurations of 4 Axis EPS CNC Router Machine:


1. Working area is 1300*2500*600mm.

2. Italy HSD Spindle 9.0kw air cooling spindle.

3. Taiwan Syntec controlling system.

4. Japan Yaskawa servo motor and drivers.

5. Delta inverter from Taiwan.

6. Taiwan HIWIN square rails.

7. Japan Omron limited switch.

8. Divided structure bed structure, Fixing with screws.

9. Working table:T-slot working table.

10. Japan Shimpo reducer.


Technical Parameters of 4 Axis EPS CNC Router Machine:


Model

STM1325-4 Axis

X,Y Working Area

1300×2500mm

Z Working Area

600mm

Resolution

0.5mm

Repositioning Accuracy

0.5mm

Lathe Structure

Seamless welded steel structure, better than cast iron one

X,Y Structure

Rack and pinion transmission, Hiwin square guide rail

Z Structure

Germany-made rolling ball screw, Hiwin square guide rail

Max. Idling Speed

30m/min

Spindle

9kw HSD spindle

Spindle Rotate Speed

0-24000r/min, variable speed

Working Voltage

AC380V/50Hz

Working Mode

YASKAWA Servo motor and diver

Command

G code (HPGL,U00,mmg,plt)

Operating System

Syntec control system

Diameter of cutter

φ3.175-φ12.7mm

Cooling Mode

Air-cooling

Work-holding

By clamp

Net Weight

3000KG

Software

Type 3, ArtCam, Ucancam


Advantages of 4 Axis EPS CNC Router Machine:


1. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.

2. Italian high-speed spindle, with top speed of 18000rpm, guaranteering maximum processing efficiency and productivity.

3. It adopts imported ball bearing, widening linear guide rail, self-lubricating sliding block. When engraving, equal force in all directions, to ensure the accuracy and strength.

4. Taiwan Syntec controller can read the codes in an efficient manner. On-line simulation and monitoring function are available. Processing efficiency and safety are guaranteed.

5. All of these models can be customized according to customer requirements.


Applications of 4 Axis EPS CNC Router Machine:


4 axis EPS CNC router machine can work on aluminium mold, wooden mold, EPS and non-metallic carbon materials, automotive foam mold, aviation mold, trains mold, 3D musical instruments, bumper, bonnet interior trim mold.


Detail Pictures of 4 Axis EPS CNC Router Machine:


Italy HSD Spindle 9.0kw air cooling spindle:



Taiwan Syntec control system:



Japan YASKAWA servo motor:



Linear ATC tool magazine:



Rotary device:



Samples of 4 Axis EPS CNC Router Machine:
