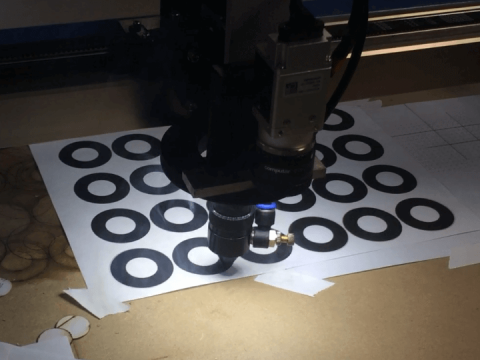

CNC Laser Cutting Machine with CCD Camera

Technical Parameters of CNC Laser Cutting Machine with CCD Camera

Product model: JV-1310

Visual range: 140*110mm

Camera system: 500W pixel camera

Laser power: 80-150W optional

Graphic format: AI, PLT, DST, DXF, BMP

Repeatability: ±0.05mm

Engraving speed: 0-1500mm/s

Cutting speed: 0-800mm/s

Working voltage: 220V±10% 50-60Hz

Machine power: ≤3KW (excluding external equipment)

According to different needs of customers, dual laser heads or multiple laser heads are optional for this type of CNC laser cutter, and the distance between laser heads can be adjusted manually or electrically. It works as a single head during camera cutting.

Features of CNC Laser Cutting Machine with CCD Camera

The panel adopts a 5-inch large screen, which is more direct and more beautiful.

Using roller guide rail from Taiwan, the cutting speed is faster, the vibration is small, and the curve is smoother.

The new system can adjust user parameters and manufacturer parameters on the panel, and it can be paused or terminated during the border walking process.

Adding a numeric keypad makes it more convenient to modify parameters.

It adopts multi-interface transmission, supports USB and LAN transmission, faster and more convenient, and supports offline work of U disk.

Equipped with a 500W pixel camera, it realizes the full-page second-shot function, hundreds of samples, one-second shooting, and one-second matching advanced visual lighting system, effectively ensuring the brightness uniformity of the visual field.

Support multi-MARK point image positioning, multiple types of MARK points, realize edge patrol cutting.

Applications of CNC Laser Cutting Machine with CCD Camera

Clothing printing, embroidery, digital printing, edge cutting, photovoltaic products, advertising production, lace.
