In order to solve the language problem in the use of NcStudio controller, STYLECNC will offer the Chinese-English manual for NcStudio software troubleshooting.

   May 29, 2023    1089 (4 Min Read)


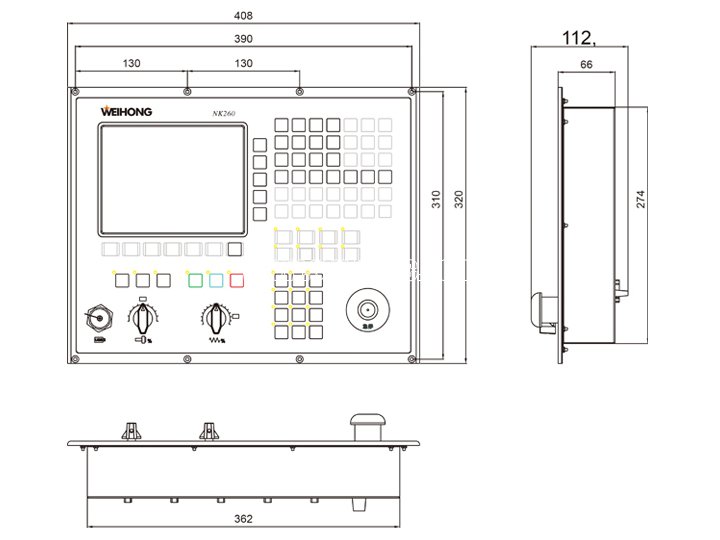

NcStudio Chinese-English user manual


1. Chinese-English Words and phrases for NcStudio



2D plt depth 二维PLT加工深度



A



About NcStudio 关于NcStudio



Acceleration 加速度



Advanced functions 高级加工指令



Advanced MDI 执行加工指令



Advanced start 高级开始



All axes  全部轴



Auto 自动



Auto mode parameter  自动参数



Auxiliary functions  辅助功能



B



Background  背景



Bottom view  仰视图



C



Calibration  对刀



Cancel 取消



Center of circle  圆心坐标



Center view  居中



Change description  变换说明



Clear view  清除画面



Close 关闭



Connection acceleration 设定弯道加速度



Coordiate  坐标



Copy 复制



Current 实际值



Current coordinate  当前工件坐标点



Customize  属性



Cut 剪切



D



Deepen 0.01mm 下降0.01毫米



Delta 差值



Depth 雕刻深度



Disable mechanical limits  限位释放



Draw the mechanical limit frame 显示行程范围



E



Edit 编辑



Edit loaded file  编辑当前加工程序



Editor 程序编辑



End (mechanical) coor 终点(机械)坐标



Enter simulation mode then start  进入仿真模式并开始仿真



Execute 执行



Exit 退出



F



Federate  进给速率



File  文件



File information  加工程序信息



File name  文件名



Find 查找



Find the next 查找下一个



Fit to window 调整至窗口大小



Front view 正视图



Full screen 全屏



G



G00 feedrate 空程速度



H



Height 高度



Help 帮助



Horizontal 横铣



how log window 显示系统日志窗口



I



I/O state  IO状态



IDLE 空闲



Import parameter 文件输入



Inner 内框



J



Jiggle 微调



JOG 点动



Jog feedrate 手动速度



L



Left view 左视图



Limit 限位



Linear acceleration  单轴加速度



List view  列表



Load the saved workpiece origin 读取保存过的工件原点



Log 系统日志



M



M.coor 机械坐标



Machine 机床



Machining  加工参数



Machining feedrate  机器速度



Machining range 加工范围



Manager 程序管理



Manual 手动



Max  最大



Maximum rpm of the spindle  主轴最高转速



Midpoint  中点



Midpoint  X轴中点



Min  最小



Mirror axis  轴镜像



Mobile calibrator  浮动对刀



Mobile calibrator  对刀块



Motion range 运动范围



Motor parameter 电机参数



Move to reference point 回机械原点



Move to workpiece origin  回工件原点



N



New  新建加工程序



No information 没有加工文件信息



Normal jog feedrate 手动低速



Northeast  东北等轴侧视图



Northwest view 西北等轴侧视图



Note 注意



O



OK 确定



Open and load 打开并编辑



Operator  操作



Order 序号



Outer 外框



P



Parameter  系统参数



Paste 粘贴



Pause 暂停



Pin 引脚号



PLU per mm PLT单位每毫米



Pol.. 极性



R



Radius 圆弧半径



Raise 0.01mm 上升0.01毫米



Rapid jog feedrate  手动高速



Ratio 显示比例



Recent edited file  最近编辑的加工程序



Recent loaded file  最近装载的加工程序



Record X  X轴记录



Rectange frame mill 铣矩形边框



Rectange mill 矩形铣底



Remaine 剩余距离



Repeat  替换



Report view  详细资料



Resume 断点继续



Right view  右视图



Round frame Mill  铣圆形边框



Round mill  圆形铣底



S



Safe height  退刀点



Save 保存



Save and load 保存并装载



Save as 另存为



Save the current workpiece origin  保存当前工件原点



Select all 全选



Set work coordinate offset  设置运动坐标偏移



Set workpiece coordinate  设置当前点工件坐标



Set workpiece origin 设置当前点为工件原点



Setting 设定值



Setting directly    直接设置



Show all point 显示所有输入输出点



Show auto window    显示自动窗口



Show current point  显示当前加工点



Show editor window  显示程序编辑窗口



Show file line number 显示加工程序序号



Show file manager window 显示程序管理窗口



Show I/O state window 显示IO状态窗口



Show manual window 显示手动窗口



Show parameter window 显示系统参数窗口



Show this dialog-box while running  执行加工指令时仍显示本窗口



Show trace window  显示加工轨迹窗口



Simulate port 仿真输入点



Single block 单段执行



Southeast view 东南等轴侧视图



Southwest 西南等轴侧视图



Space 刀尖间距



Spindle 主轴参数



Spindle high rev  主轴高速



Spindle low rev 主轴低速



Spindle medial rev  主轴中速



Start 开始



Start (mechanical) coor 起点(机械)坐标



"Start point(i.e. ,bottom-left corner)" 开始左边(即坐下角坐标)



Start up/stop delay of the spindle 主轴启动(停止)时间



Status bar  状态栏



Stop 停止



T



Tag 名称



Thickness of the mobile calibrator  对刀块的厚度



Tip of the day 每日提示



Toggle polarity 反向该点极性



Tool bar 工具栏



Tool radius 刀具直径



Top view 俯视图



Total time 花费时间



Trace 跟踪颜色



Trace 加工轨迹



Trace current line  跟踪加工程序当前行



Turn on coolant 冷却开启



Turn on spindle 主轴开启



U



Undo 撤消



Unit: mm  单位:毫米



Unload 卸载



V



Vertical  纵铣



View 查看



W



W.coor 工件坐标



Width 宽度



Windows 窗口



Workbench  工作台行程



Z



Z axis  Z轴



Zoom in 缩小



Zoom out  放大



Zoom ratio  显示比例



2. Chinese-English Sentence interpretation for NcStudio



Clear view after opening a new file



打开新文件后自动清空跟踪视图



Enable the default spindle rpm, and ignore the rm declare in the file



使用缺省转速放弃加工文件中指定的主轴转速,使用人为设置的系统缺省主轴转速



Enable the default feedrate, and ignore declared in the file



使用缺省速度放弃加工文件中的指定速度,使用上面设置的系统缺省速度



Enable the self-adaption optimization algorithm for the feedrate ,which will give better performance of machining  effection



速度自适应优化允许系统根据加工文件的连接特性,对加工速度进行优化



IJK increment mode, which means IJK values at a circle G code are incremental values from the center of the circle



IJK增量模式圆弧编程(G代码)中,圆心参数(IJK)为相对于起点的增量



In order to avoid the position error caused by accidental cause, such as power off, emergency stop .please carry out this step to build or correct the mechanical coordinate after software starts up and an emergency stop occurred.



为了防止在加工过程中因以外情况,如断电,造成当前位置不准确,请在程序启动或者放生紧停之后重新执行机械原点



Input displacement-per-pulse of each axis, which are the displacement between cutter and workbench wherever the motor receives a pulse



输入各个轴脉冲位移当量,即电机每发出一个脉冲,刀和工作台的相对位移



Note : please restart after changing above parameters



注意:修改工作台行程需要重新启动程序



Please input the password to open the manufactory parameter window



请输入口令以打开厂商参数窗口



Push the left button, then all axes move to the reference point in order Z, X and Y axes



按左面按钮,则三个轴以Z,X,Y的次序全部回机械原点



Please select one of the following three ways



请使用下列三种方法之一回机械原点



Push the left buttons, then corresponding axis moves back to the mechanical reference points



按左列按钮,则对应轴回机械原点



Reverse axis Z when import (plt or eng) file



当有文件输入(plt或eng)时Z轴反向



Safe height is the Z-axis workpiece coordinate where tools does never touch workpieces accidentally



执行“回零”动作时,刀的上抬高度(相对于工件)



Set the workbench dimensions, which decide when the system raises an out-of-limit alarm after the mechanical coordinate has become effective



设置工作台行程空间:如果机床运动超出此范围,则系统提示软限位报警(回机械原点后生效)



Set the angle-per-pulse while Y axis is a revolving axis


当Y轴是转轴时,设定脉冲角度当量



The time is calculated at 100% federate, perhaps not equal to the actual value



以上时间信息均是按100%进给倍率计算出来的,所以,并不一定等于实际加工时间



Tip : press TURBO(or CTRL) key jog more rapidly



提示:按下高速键(或CTRL键)则高速点动



Tip : this dialog-box is a model-less, it means the main window is still active



提示:现在请在手动窗口



To perform a calibration action, Continue ?



执行对刀操作,继续?



You can validate the mechanical coordinate directly if you confirm that you had done this step at the last start-up and  *The machine is not powered off  *No emergency stop occurred



如果你肯定当前位置与机械坐标一致,请执行直接设定操作。你必须确保在此之前:*机床没有关闭过 *机床没有紧停发生过
